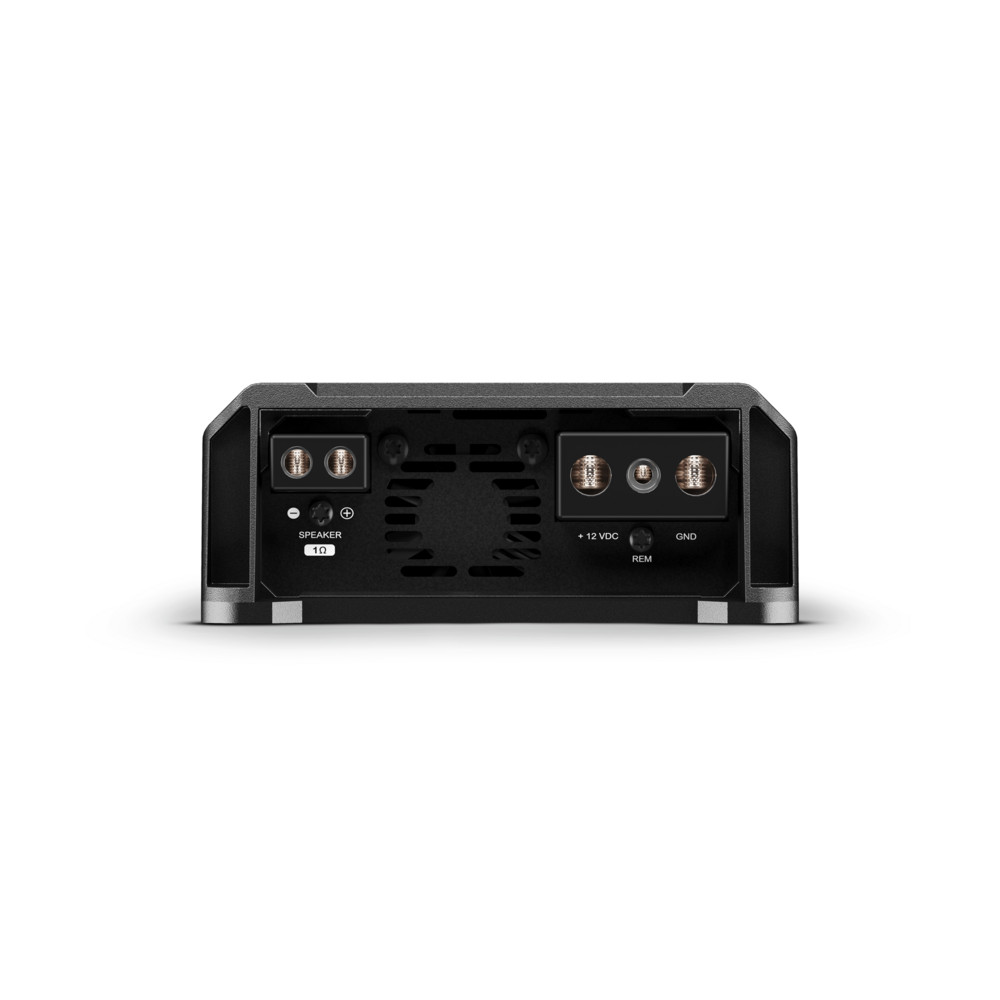

SD1200.1 EVO 5

1200.1 EVO 5 – 1 OHM Power @ 4Ω: 1 X 522 WRMS Power @ 2Ω: 1 X 796 WRMS Power @ 1Ω: 1 X 1200 WRMS 1200.1 EVO 5 – 2 OHMS Power @ 4Ω: 1 X 796 WRMS Power @ 2Ω: 1 X 1200 WRMS Power @ 1Ω: 1 X N/A Frequency Response (-3dB): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz Operating Voltage: 9V ~ 16V Signal-Noise Ratio: 95dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 54A 2Ω: 52A Current Draw (Max): 1Ω: 108A 2Ω: 105A Total Efficiency: 1Ω: 88% 2Ω: 91% Damping Factor: >2000 Power Cable: 16mm² (5 AWG) Audio Output Cable: 1Ω: 2 x 4 mm² (6 AWG) 2Ω: 2 x 2,5 mm² (13 AWG) Recommended Fuse (Music): 60A Recommended Battery: 60Ah Width: 13.6 cm / 5.4 in Length: 18 cm / 7.1 in Height: 5.48 cm / 2.1 in Weight: 1.12 Kg
