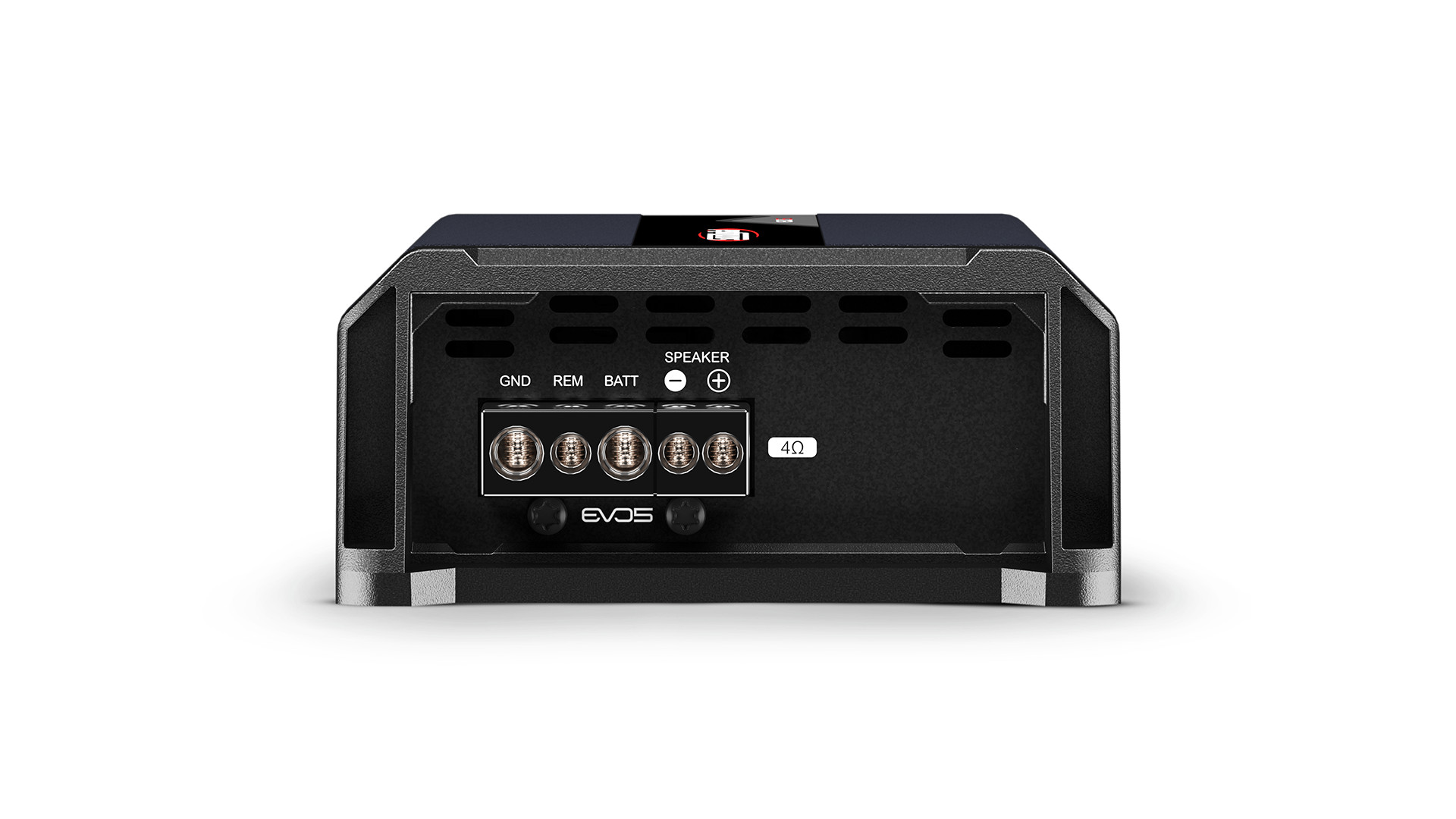

SD800.1 EVO 5 – 2 Ohm

800.1 EVO 5 – 2 OHMS RMS Power @ 2Ω: 800W RMS Power @ 4Ω: 535W RMS Power @ 8Ω: 348W 800.1 EVO 5 – 4 OHMS RMS Power @ 2Ω: N/A RMS Power @ 4Ω: 800W RMS Power @ 8Ω: 528W Frequency Response (-3dB): 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz Supply Voltage: 8V ~ 16V SNR: 2Ω: 96dB 4Ω: 97dB Input Sensitivity (RCA): 0.2V ~ 2V High Input Sensitivity: 1.5V ~ 15V Consumption with music signal: 2Ω: 40.8A 4Ω: 38.7A Consumption with resistive load (1kHz @ 12.6V): 2Ω: 81.6A 4Ω: 77.4A Total Efficiency: 2Ω: 79.4% 4Ω: 78.9% Damping Factor (@100Hz Nominal Impedance): 200 Power Cord: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG) Recommended Fuse (Musical): 40A Recommended Battery (Minimum for Music Use): 60Ah Width: 11.3 cm Length: 14.8 cm Height: 5.1 cm Weight: 0.7 kg
