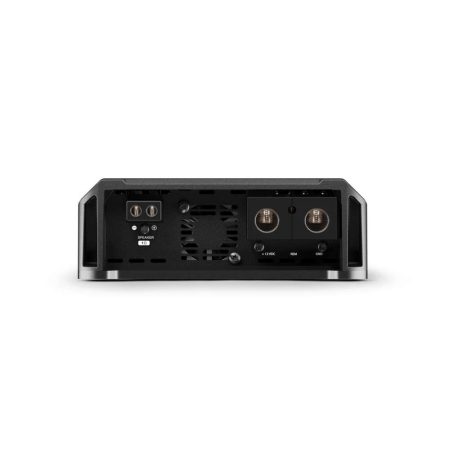

SD5000.1 EVO 5

Κωδικός Προϊόντος : 165402

Μοντέλο : SD5000.1 EVO 5

700.00 €

Power @ 1Ω: 1 X 5000 WRMS Power @ 2Ω: 1 X 3300 WRMS Power @ 4Ω: 1 X 2178 WRMS

Διαθέσιμο σε 1 - 3 Εργάσιμες

Περιγραφή

General Specifications

5000.1 EVO 5 – 1 OHM

Power @ 1Ω: 1 X 5000 WRMS Power @ 2Ω: 1 X 3300 WRMS Power @ 4Ω: 1 X 2178 WRMS

5000.1 EVO 5 – 2 OHMS

Power @ 1Ω: N/A

Power @ 2Ω: 1 X 5000 WRMS Power @ 4Ω: 1 X 3300 WRMS

Frequency response (-3dB):

5Hz ~ 6kHz

Low pass filter (12dB/octave):

50Hz ~ 6kHz

Subsonic filter (12dB/octave)

5Hz ~ 80Hz

Supply voltage:

8V~16V

Signal-to-noise ratio:

90dB

Input sensitivity (RCA):

0.2V~2V

Input sensitivity (high input):

1.5V~15V

Music consumption:

230A

Maximum consumption:

461A

Total efficiency:

86%

Damping factor (@100Hz nominal impedance):

>2000

Power cord:

50mm² (0 AWG)

Audio Out Cable:

1Ω: 2 x 10mm² (7 AWG) 2Ω: 2 x 6mm² (9 AWG)

Recommended fuse (musical):

250A

Recommended drums (minimum for musical use):

250Ah

Width:

18 cm

Length:

25 cm

Height:

6.32 cm

Weight:

2.75kg
