Name: SD8000.1 EVO 5
Brand: SounDigital
SKU: 408003
Availability: InStock

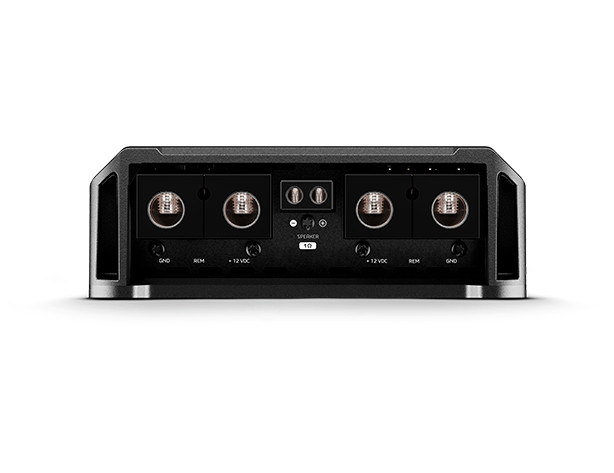

The 8000.1 EVO 5 is a compact and modern amplifier that delivers 8000W RMS of power in 1 channel.

Incorporated with the innovative MCPCB board. Increasing your efficiency and ensuring much more consistent performance.

https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
8000.1 EVO 5 – 1 OHM
Power @ 4Ω: 1 X 3844 WRMS
Power @ 2Ω: 1 X 5360 WRMS
Power @ 1Ω: 1 X8000 WRMS
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  8000.1 EVO 5 – 1 OHM
  Power @ 4Ω: 1 X 3844 WRMS
  Power @ 2Ω: 1 X 5360 WRMS
  Power @ 1Ω: 1 X 8000 WRMS
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  8000.1 EVO 5 – 2 OHMS
  Power @ 4Ω: 1 X 5360 WRMS
  Power @ 2Ω: 1 X 8000 WRMS
  Power @ 1Ω: N/A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Frequency Response (-3dB):
  8Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Subsonic (12dB/oct):
  8Hz ~ 80Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Low Pass filter (12dB/oct):
  50Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Bass Boost:
  0dB ~ 12dB @ 50Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Operating Voltage:
  9V ~ 16V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  SNR
  @ 1Ω: 92dB
  @ 2Ω: 85dB
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Input Sensitivity (RCA):
  0.2V ~ 2V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Input Sensitivity (High Level input):
  1.3V ~ 15V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Current Draw (music):
  381A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Current Draw (max.)
  762A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Total Efficiency:
  80%
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Damping Factor (@100Hz nominal impedance)
  >10000
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Power Cable:
  70mm² (00 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Speaker Cable
  2 x 10mm² (7 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Recommended Fuse (music):
  2 x 200A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Recommended battery (minimum):
  2 x 220Ah
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Width:
  7.1″ / 18 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Length:
  12.2″ / 31 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Height:
  2.5″ / 6.32 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>
  Weight:
  8.79 lb / 3.99 kg
