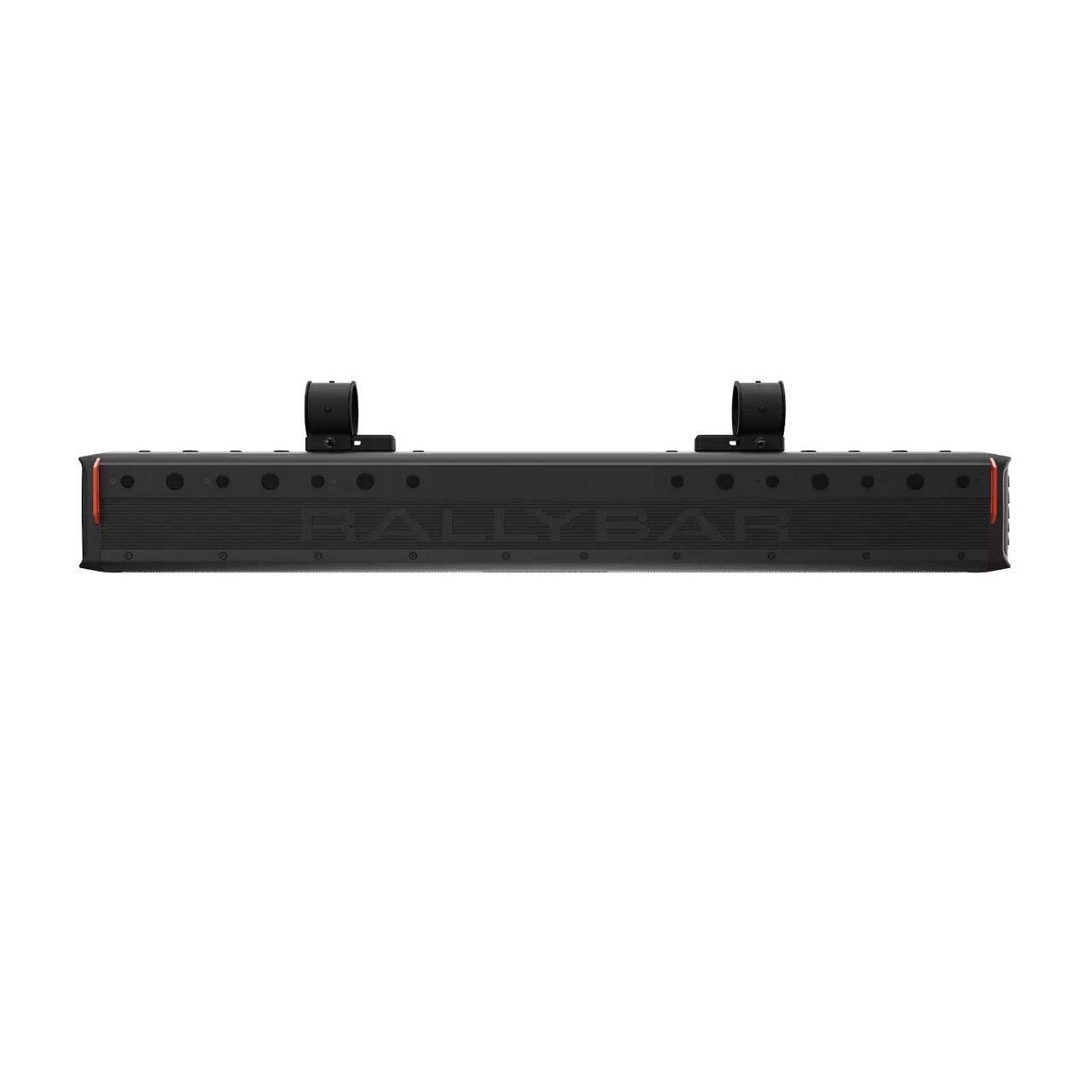

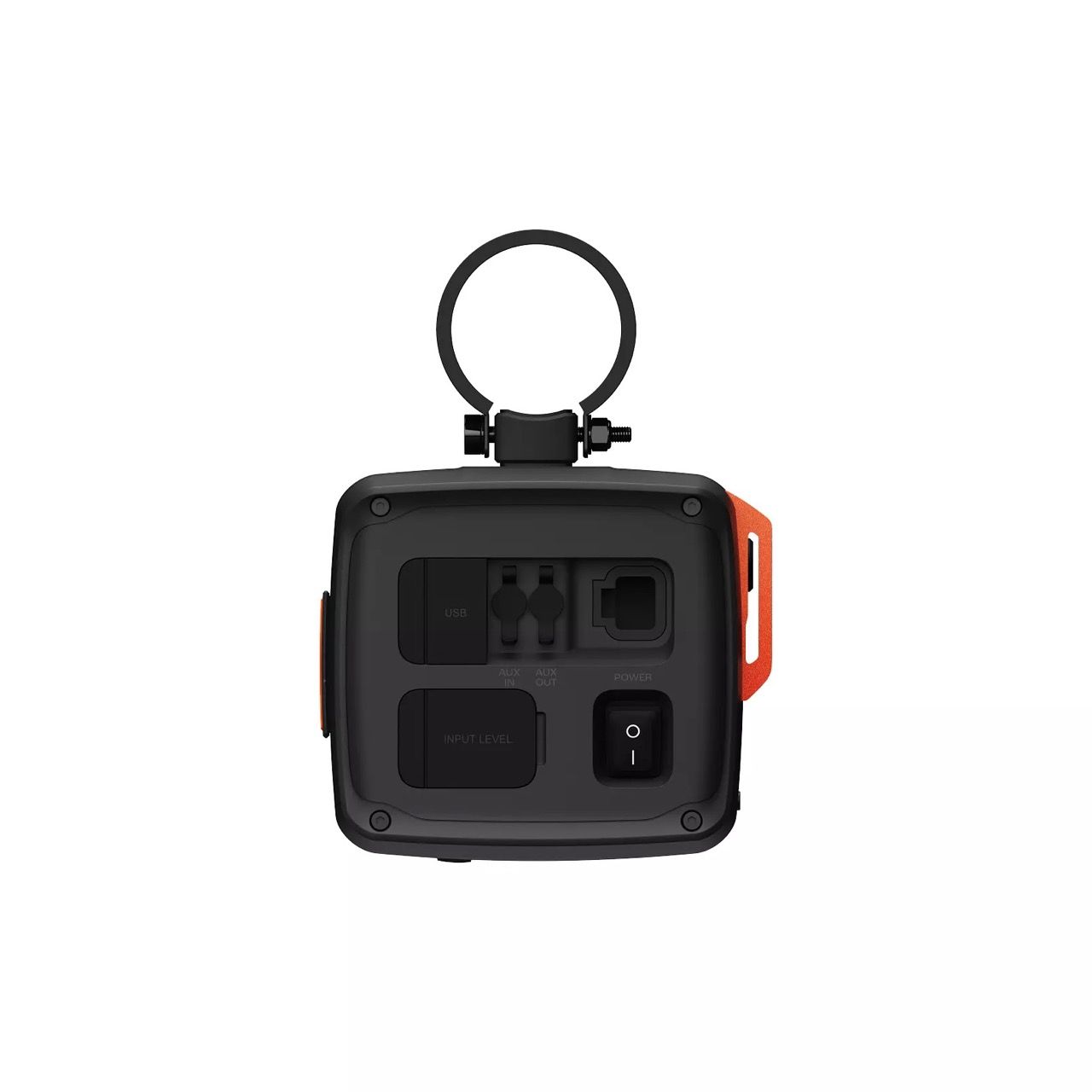

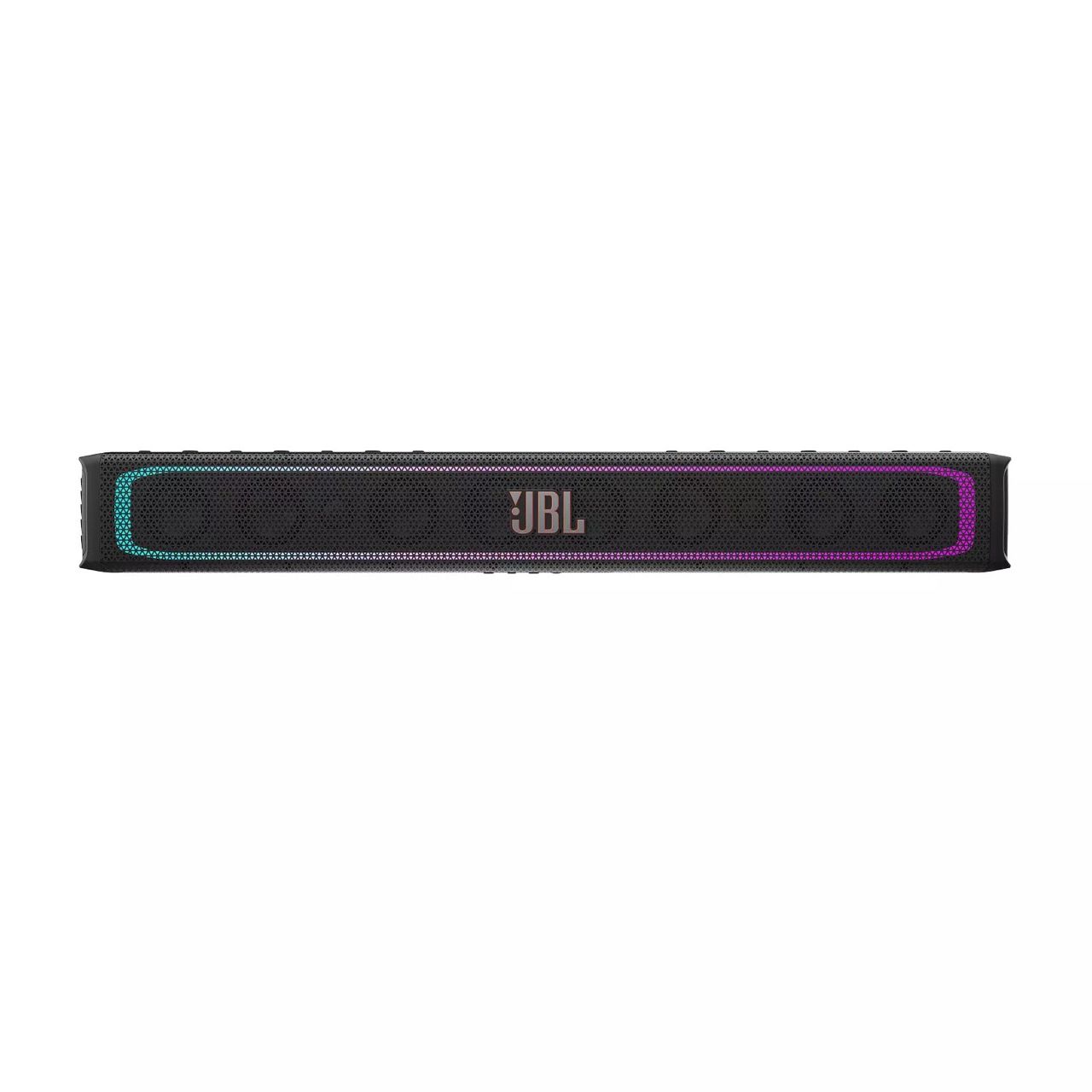

JBL RALLYBAR XL (35″ – 300Wrms)

IP66-rated water and dust resistant Bluetooth Soundbar

A IP66 rated water resistant Bluetooth Soundbar with 300Wrms amplifier, extraordinary sound experience and unique dynamic LED lights to UTVs, golf carts, boats and other vehicles built for recreation. Each RALLYBAR XL can be used by itself or connected to multiple RALLYBAR XL or RALLYBAR XL family products by using its built-in broadcast mode. The innovative mounting kits design offers multiple position combinations on top and back to accommodate a variety of installation requirements.

Features

• Unique Dynamic LED Show
  Lights, color, party! Transform your off-road journey into a rocket concert.
• 300Wrms Class-D Amp Built-In
  The 300Wrms (THD<1%) Class-D amplifier ensures powerful, high-quality JBL Original Pro Sound when you take the wheel or helm.
• Water and Dust Resistant
  IP66-rated water resistance protects soundbar speakers from dust ingress and powerful water jets.
• JBL Pro Sound
  With HI-RESOLUTION Audio on wired sources, JBL Original Pro sound tuning, and DSP delivers extraordinary sound performance.

What’s in the box

• 1x Soundbar
• 2x Security cables
• 1x Small Wrench | 1x L-Small Allen wrench | 1x T-handle hex wrench | 2x Straps with Velcro
• 1x G-Clamp | 1x Keychain
• 1x 12ft (3.66m) power/ground wire harness
• 2x Rubber top covers | 2x Mount cleats | 2x Short M8 screws | 2x Short M5 screws | 2x Long M5 screws | 2x M5 screw nuts | 4x Flat washers
• 2x C-Clamps (2”) | 2x C-Clamps (1.75”) | 2x Thick rubber strips (for 1.5” pole) | 2x Thin rubber strips (for 2” & 1.75” pole)

General Specifications

• Transducers 8x 2.75”(70mm) woofers, 2x 1”(25mm) Tweeters, 4 x 7.2″(182.8mm) x3″(76.2mm) Racetrack Passive Radiators
• Output Power 300WRMS, 600W PEAK (IEC60268)
• THD at Rated RMS Power < 1%
• Voltage Range 9.6 – 16VDC
• Quiescent Current Draw < 0.9A
• Maximum Current Draw 40A
• Frequency response 45Hz-40kHz
• Signal-to-noise Ratio > 80 dB
• Cable type 10AWG
• Bluetooth Version 5.3
• Aux-In 2Vrms(0.35Vrms – 2Vrms), 4Vrms(0.7Vrms – 4Vrms), 6Vrms(1.05Vrms – 6Vrms) (3.5 mm connector)
• Aux-Out 2 Vrms (3.5 mm connector)
• USB format FAT16, FAT32
• Soundbar Dimension 35-11/32″ x 5″ x 4-5/8″ (897.5 x 126.7 x 118mm)
• Soundbar Weight 20.83 lbs (9.45 kg)
