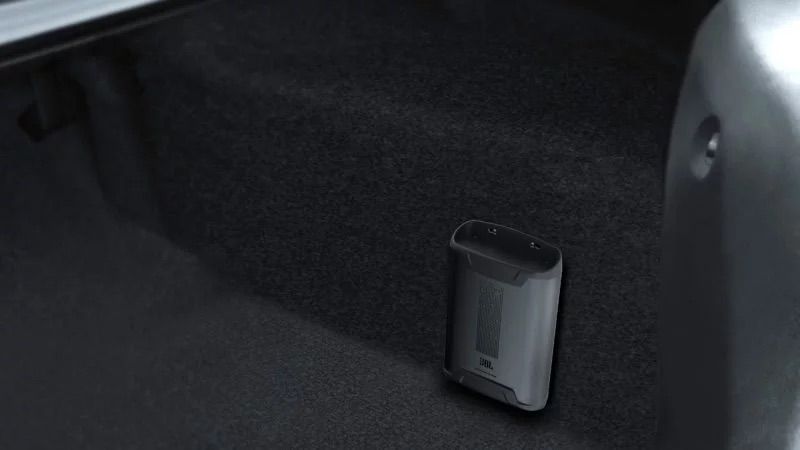

JBL DSP 4086 (8 CHANNELS – 1000W)

Engineered for the ultimate sound experience.

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems.
It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers.
With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

Technical specifications:

• Max Power: 1000W peak
• RMS Power Output @ 2Ω: 60W x 8, <1% THD+N
• RMS Power Output @ 4Ω: 40W x 8, <1% THD+N
• Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0–to–48dB slopes
• Selectable EQ adjustment: Parametric or Graphic
• Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output
• Frequency Response: 10Hz to 22kHz @ -3dB
• Signal-to-Noise Ratio: >90dB @ 4Ω
• Subwoofer Level Control: -30dB to +6dB
• Fuse Rating: 40A
• Operating Voltage: 8V to 16V

What’s in the box:

• DSP Amplifier
• Wiring Harness
• USB Drive with Tuning Software
• USB Tuning Cable
• Wired remote level bass control
• Mounting hardware
• 6 x hi level input adapters
• Spare fuse
• 4 x wire ties
• 2 x JBL sticker
• Quick Start Guide
