GZDSP 6-10SQ

10-channel digital signal processor

10-channel DSP

Digital sound processor with six channel high-level or RCA input, digital inputs and Bluetooth functionality

• Premium DAC with differential signal routing (Asahi Kasei 445x)
• Optical- and digital input
• Input equalizer
• 2x 28 bit Analog Devices Prozessor (ADAU1452)
• High-quality OP amps with lowest noise and distortion behavior (OPA 1678)
• Separate 31 band equalizer for each channel
• 7 band input equalizer
• Time delay
• Windows GUI software
• Automatic turn-on function

• Type	10-channel digital signal processor
  High resolution compatible	no
  TOSLINK input	yes
  Coaxial connector	yes
  High-level audio mix	up to 6 channels
  Frequency response	20 Hz – 20 kHz
  Signal-to-Noise	> 113 dB (A-weighted)
  Input sensitivity	0.5 – 3 V (RCA)
  Input sensitivity	2 – 8 V (high-level)
  Max. pre-out voltage	3.8 V RMS

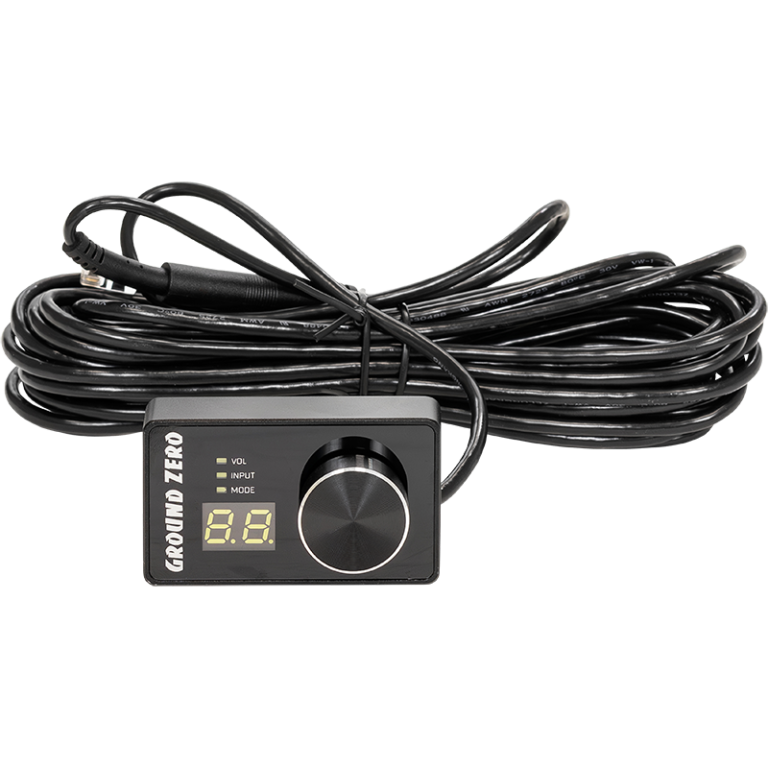

  Remote control	optional
  Preset memory	10
  Dimensions (w x l x h)	132 x 143 (171) x 38,5 mm / 5.20 x 5.63 (6.73) x 1.52″
