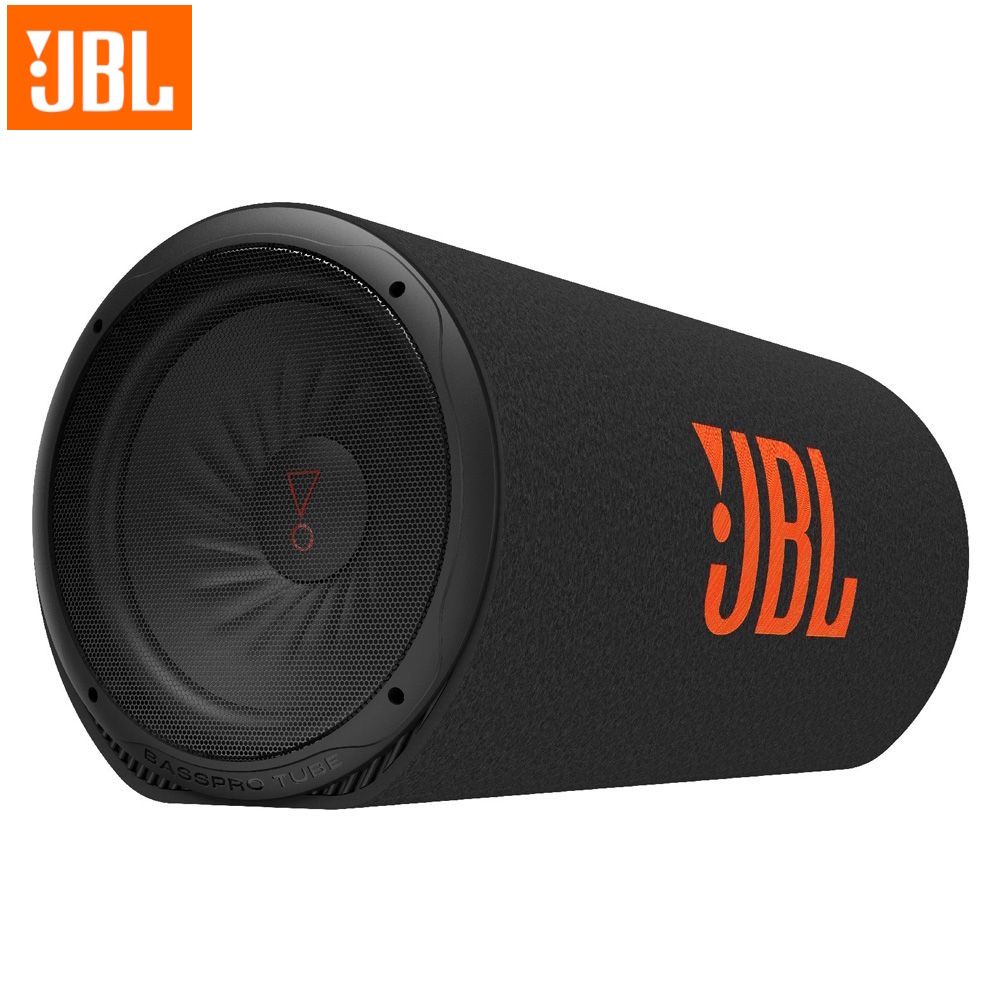

JBL BASS PRO TUBE12 (12″ – 450W – AMPL)

Powerful JBL Bass Reinforcement

JBL BassPro Tube Subwoofer delivers 150 Watts of powered noise-free deep bass thanks to JBL’s patented Slipstream port technology.

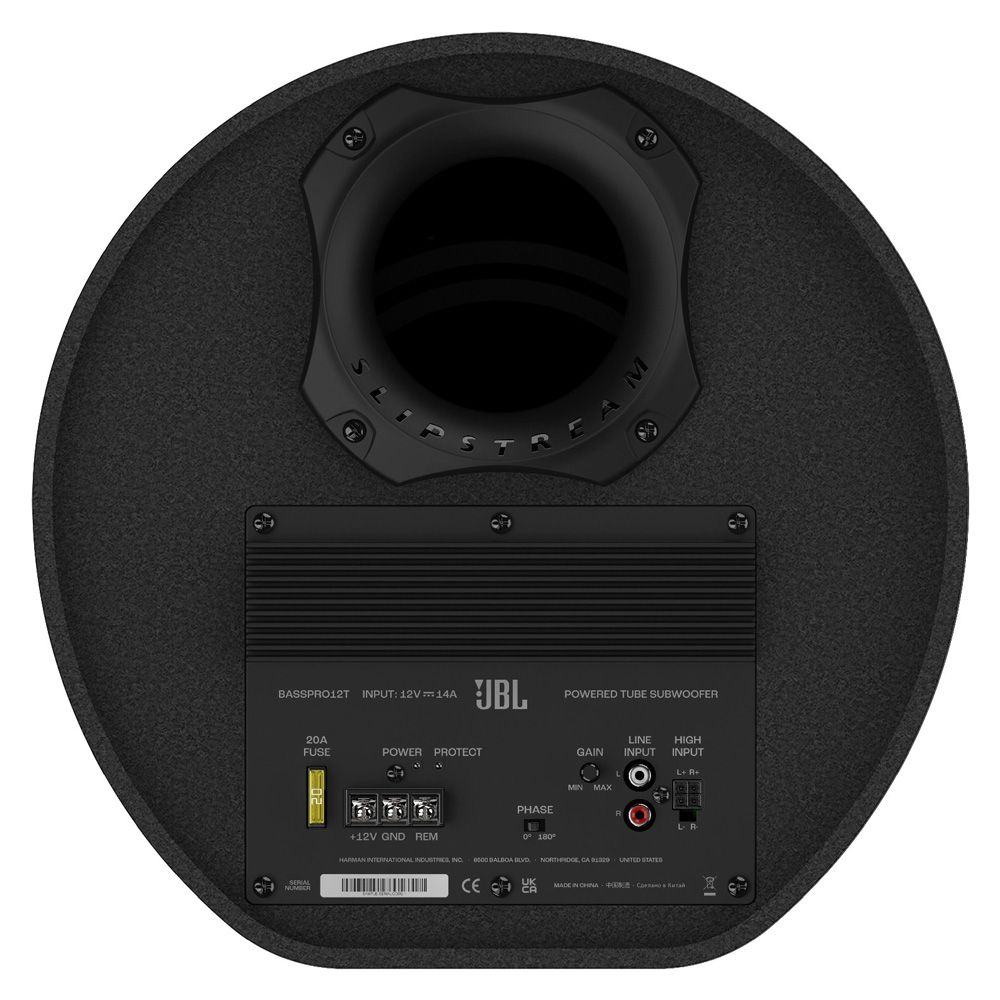

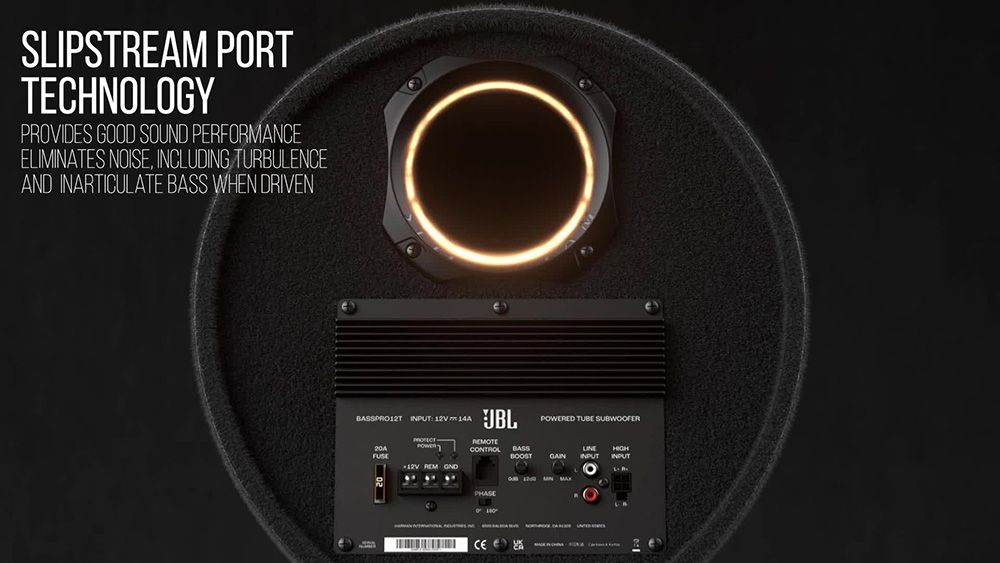

The Slipstream port is mathematically engineered to keep airflow with the port turbulence-free, which avoiding the common shortcoming of traditional ported boxes. Coupled with the built-in 150Wrms amplifier the BassPro Tube Subwoofer really delivers.
Also the Bass Volume Remote control is included for easy adjustment, no more stopping to pop the trunk.

Audio Specifications

• Driver Complement: 12” (300mm) Subwoofer
• Amplifier Power: Class D, 150Wrms, 450W max peak
• Frequency Response: 30Hz – 200Hz
• Fuse: 20A
• Maximum Current Draw: 20 A
• Quiescent Current Draw: <0.9A

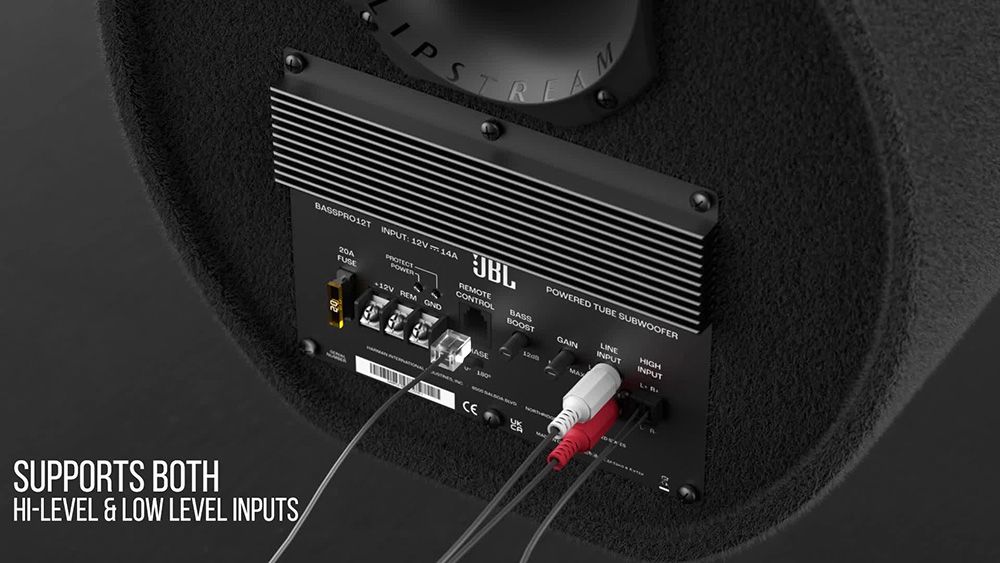

• Input Sensitivity: 0.15 V – 5V Low-Level Input; 0.75 V – 25V High-Level Input
• Crossover Point: 105Hz LPF
• Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 45 Hz
• Dimensions (W x H x D): 336(W.H) × 665(D) mm
• Weight: 9kg (19.84 lb)
